型號：KZE開閉式液壓快速接頭（碳鋼）
產品詳情
描述：
KZE開閉式液壓快速接頭（碳鋼）
應用：KZE系列廣泛應用于各種工業所需的連接，主要用于建筑設備、森林設備、農業設備、液壓機具、鋼鐵設備及其它所需的液壓應用。
技術規范：
| 規格(英寸) | 1/8 | 1/4 | 3/8 | 1/2 | 1" | 1-1/4" | 1-1/2" | 2" |
| 額定壓力(PSI) | 5000 | 3000 | 3000 | 3000 | 3000 | 2000 | 2000 | 1500 |
| 溫度范圍(標準密封圈) | -20℃至+120℃ | |||||||
| 標準密封圈材料 | 丁腈橡膠NBR | |||||||

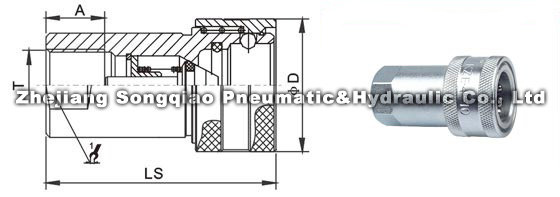

母插座
| PARTNO. | LS | ￠D | HEX1 | A | T |
| KZE-01SF | 48 | 24 | 14 | 19 | M10x1 |
| KZE-02SF | 58 | 28 | 19 | 12.5 | G1/4 |
| KZE-03SF | 65 | 35 | 21 | 13 | G3/8 |
| KZE-04SF | 66 | 39.5 | 27 | 17 | G1/2 |
| KZE-06SF | 79 | 49 | 36 | 18 | G3/4 |
| KZE-08SF | 94 | 56 | 41 | 21 | 1 |
| KZE-10SF | 115 | 70 | 54 | 27 | G1-1/4 |
| KZE-12SF | 124 | 79 | 60 | 27 | G1-1/2 |
| KZE-16SF | 132 | 102 | 77 | 30 | G2 |

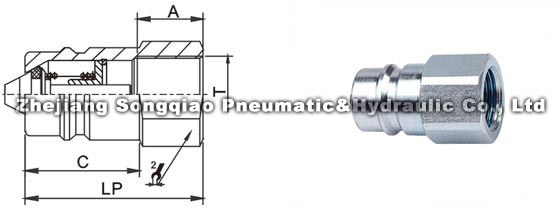

公插頭
\
| PARTNO. | LP | C | HEX2 | A | T |
| KZE-01PF | 29 | 19.5 | 14 | 22 | M10x1 |
| KZE-02PF | 36 | 22.5 | 17 | 12.5 | G1/4 |
| KZE-03PF | 40 | 25 | 22 | 13 | G3/8 |
| KZE-04PF | 46 | 29 | 27 | 17 | G1/2 |
| KZE-06PF | 55 | 39 | 36 | 18 | G3/4 |
| KZE-08PF | 59.5 | 44 | 41 | 21 | 1 |
| KZE-10PF | 70 | 45 | 52 | 27 | G1-1/4 |
| KZE-12PF | 75 | 49 | 60 | 27 | G1-1/2 |
| KZE-16PF | 80 | 52 | 77 | 30 | G2 |
