型號：LSQ-315 氣動快速接頭（碳鋼）
產品詳情
描述：
LSQ-315 氣動快速接頭（碳鋼）
→產品描述：有效通徑7.5毫米，日本標準
→技術優勢：超大流量閥，單手操作。
→產品應用：氣動工具，汽車工業，壓縮空氣，工程配套。
→互換性：日東(NITTO)HI-COUPLA系列,希恩(CEJN)315系列利達時(RECTUS)13KA系列。
→工作壓力：1.6Mpa
→工作溫度：-20℃+120℃
>
| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-315-02SM | 62.8 | 23.3 | 20 | 13 | ZG1/4 | ￠7.8 |
| LSQ-315-03SM | 60.8 | 23.3 | 20 | 13 | ZG3/8 | ￠11.3 |
>
| PART NO. | LP | C | HEX1 | A | T | d |
| LSQ-315-02PM | 39.5 | 20.5 | 17 | 13 | ZG1/4 | ￠7.5 |
| LSQ-315-03PM | 40 | 20.5 | 17 | 13 | ZG3/8 | ￠7.5 |
>

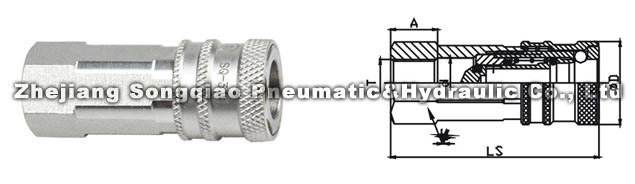

| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-315-02SF | 57.7 | 23.3 | 20 | 13 | G1/4 | ￠14 |
| LSQ-315-03SF | 57.7 | 23.3 | 22 | 12 | G3/8 | ￠14 |
>

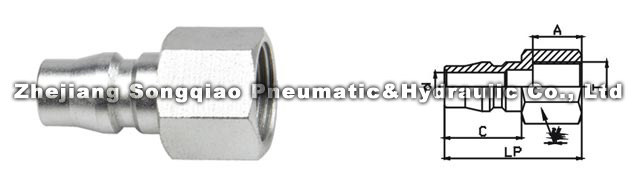

| PART NO. | LP | C | HEX1 | A | T | d |
| LSQ-315-02PF | 36.5 | 20.5 | 17 | 13 | G1/4 | ￠7.5 |
| LSQ-315-03PF | 36.5 | 20.5 | 19 | 13 | G3/8 | ￠7.5 |
>

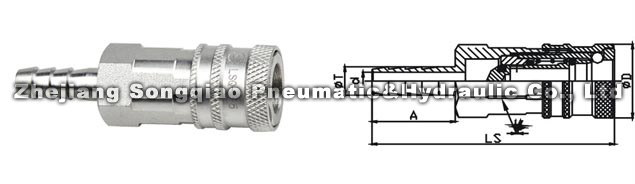

| PART NO. | LS | ￠D | HEX1 | A | ￠T | d |
| LSQ-315-01SH | 67.7 | 23.3 | 20 | 20 | 7 | ￠4 |
| LSQ-315-02SH | 72.7 | 23.3 | 20 | 25 | 9 | ￠5.5 |
| LSQ-315-03SH | 72.7 | 23.3 | 20 | 25 | 11 | ￠7.5 |

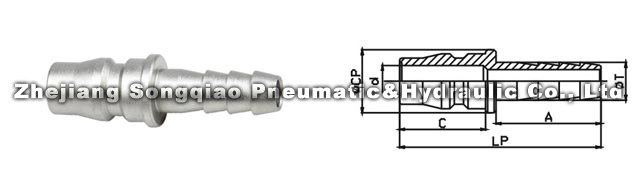

| PART NO. | LP | D | ￠ CP | A | ￠ T | d |
| LSQ-315-01PH | 43 | 20.5 | 15 | 20 | 7 | ￠ 7.5 |
| LSQ-315-02PH | 48 | 20.5 | 15 | 25 | 9 | ￠ 7.5 |
| LSQ-315-03PH | 48 | 20.5 | 15 | 25 | 11 | ￠ 7.5 |
