型號：LSQ-17開閉式氣動快速接頭（黃銅）
產品詳情
描述：
LSQ-E開閉式氣動快速接頭（黃銅）
→產品描述：單手操作，單開閉閥。
→技術優(yōu)勢：單手操作，大流量。
→產品應用：氣動工具，測量和控制設備，壓縮空氣。
→互換性：利達時（RECTUS）17KA系列。
→工作壓力：1.0Mpa
→工作溫度：-20℃+100℃

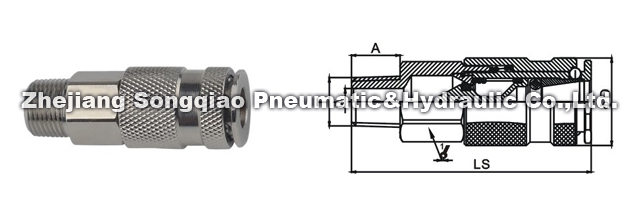

| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-17-02SM | 62.5 | 23.3 | 19 | 13 | ZG1/4 | 7 |
| LSQ-17-03SM | 59.5 | 23.3 | 19 | 13 | ZG3/8 | 11 |
| LSQ-17-04SM | 60 | 23.3 | 22 | 14 | ZG1/3 | 14 |

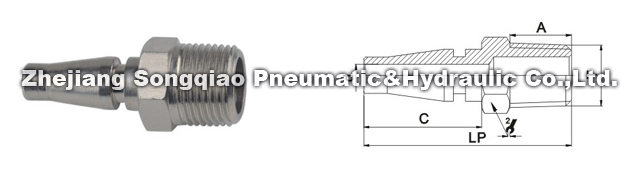

| PART NO. | LP | D | HEX1 | A | T | d |
| LSQ-17-02PM | 44 | 25 | 14 | 13 | ZG1/4 | 4.6 |
| LSQ-17-03PM | 44.5 | 25 | 17 | 13 | ZG3/8 | 4.6 |
| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-17-02SF | 58 | 23.3 | 19 | 10 | G1/4 | 14 |
| LSQ-17-03SF | 57 | 23.3 | 19 | 9 | G3/8 | 14 |
| LSQ-17-04SF | 60 | 23.3 | 24 | 12 | G1/2 | 14 |

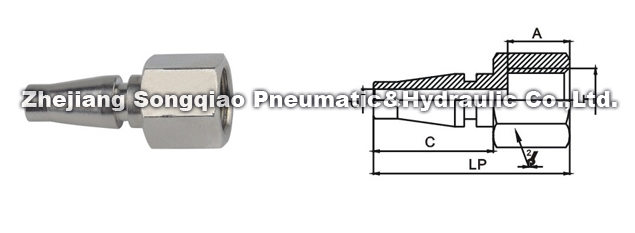

| PART NO. | LP | D | HEX1 | A | T | d |
| LSQ-17-02PF | 41 | 25 | 17 | 13 | G1/4 | 4.6 |
| LSQ-17-03PF | 41 | 25 | 19 | 13 | G3/8 | 4.6 |

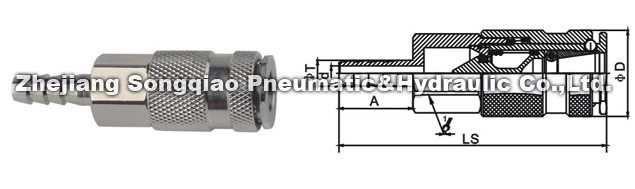

| PART NO. | LS | D | HEX1 | A | T | d |
| LSQ-17-01SH | 72.5 | 23.3 | 19 | 20 | 7 | 4 |
| LSQ-17-02SH | 76 | 23.3 | 19 | 25 | 9 | 5 |
| LSQ-17-03SH | 76 | 23.3 | 19 | 25 | 11 | 7.5 |

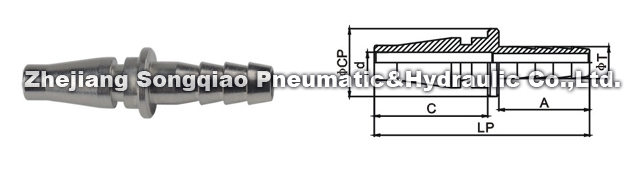

| PART NO. | LP | D | HEX1 | A | T | d |
| LSQ-17-01PH | 47.5 | 25 | 15 | 20 | 7 | 4.6 |
| LSQ-17-02PH | 52.5 | 25 | 15 | 25 | 9 | 4.6 |
| LSQ-17-03PH | 52.5 | 25 | 15 | 25 | 11 | 4.6 |
