型號：LSQ-DG單手半自動氣動快速接頭（黃銅）
產品詳情
描述：
LSQ-DG單手半自動氣動快速接頭（黃銅）
→產品描述：單手操作，歐洲最為廣泛使用的連接頭型式。
→技術優勢：單手操作，廣泛的互換性，多種連接備選。
→產品應用：氣動工具，實驗室，測量和控制設備，機械設備。
→互換性：希恩（CEJN）320系列、利達時（RECTUS）25KA與26KA系列。
→工作壓力：1.0Mpa
→工作溫度：-20℃+120℃

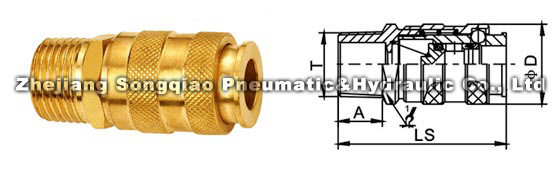

| PARTNO. | LS | ￠D | HEX1 | A | T |
| LSQ-DG-02SM | 52.5 | 25 | 22 | 13 | 1/4 |
| LSQ-DG-03SM | 52.5 | 25 | 22 | 13 | 3/8 |
| LSQ-DG-04SM | 54.4 | 25 | 22 | 14 | 1/2 |

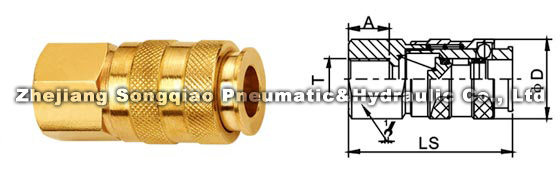

| PARTNO. | LS | ￠D | HEX1 | A | T |
| LSQ-DG-02SF | 52.5 | 25 | 22 | 13 | 1/4 |
| LSQ-DG-03SF | 52.5 | 25 | 22 | 13 | 3/8 |
| LSQ-DG-04SF | 53.5 | 25 | 24 | 14 | 1/2 |

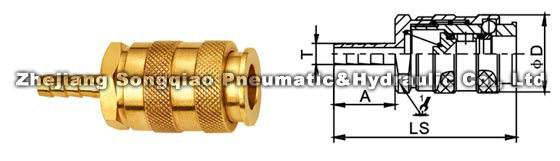

| PARTNO. | LS | ￠D | HEX1 | A | T |
| LSQ-DG-02SH | 64.5 | 25 | 22 | 25 | 9 |
| LSQ-DG-03SH | 69.5 | 25 | 22 | 30 | 10.5 |
| LSQ-DG-04SH | 69.5 | 25 | 22 | 30 | 13 |

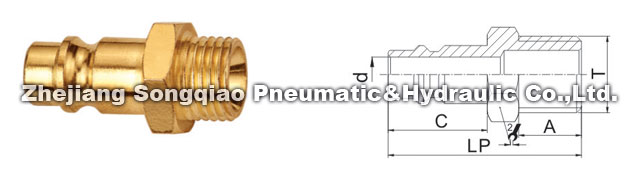

| PARTNO. | LP | C | HEX2 | A | T | d |
| LSQ-DG-02PM | 40 | 21 | 14 | 13 | 1/4 | 7 |
| LSQ-DG-03PM | 40 | 21 | 17 | 13 | 3/8 | 7 |
| LSQ-DG-04PM | 42 | 21 | 22 | 14 | 1/2 | 7 |

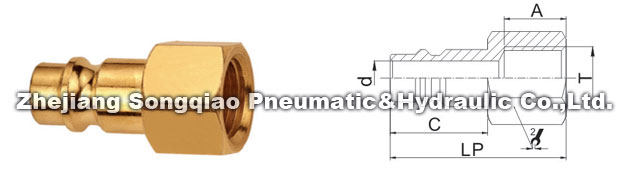

| PARTNO. | LP | C | HEX2 | A | T | d |
| LSQ-DG-02PF | 37 | 21 | 17 | 13 | 1/4 | 7 |
| LSQ-DG-03PF | 38 | 21 | 19 | 13 | 3/8 | 7 |
| LSQ-DG-04PF | 38 | 21 | 24 | 14 | 1/2 | 7 |

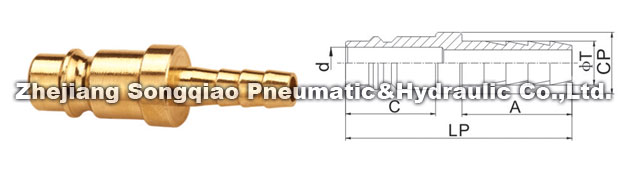

| PARTNO. | LP | C | CP | A | T | d |
| LSQ-DG-02PH | 51 | 21 | ￠14 | 25 | 9 | 7 |
| LSQ-DG-03PH | 56 | 21 | ￠14 | 30 | 10.5 | 7 |
| LSQ-DG-04PH | 56 | 21 | ￠14 | 30 | 13 | 7 |
